La Vie Residential

Riyadh, KSA

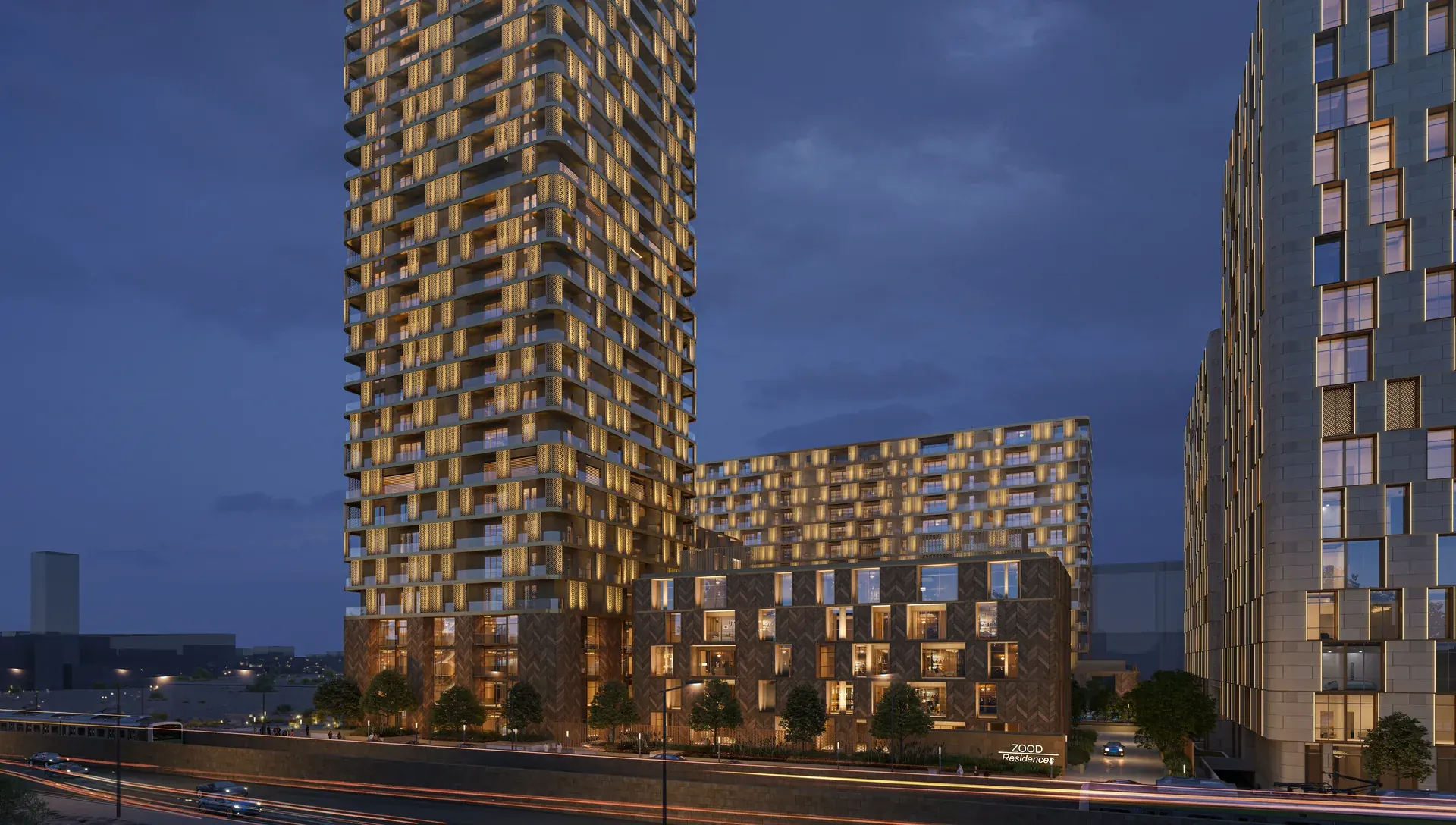

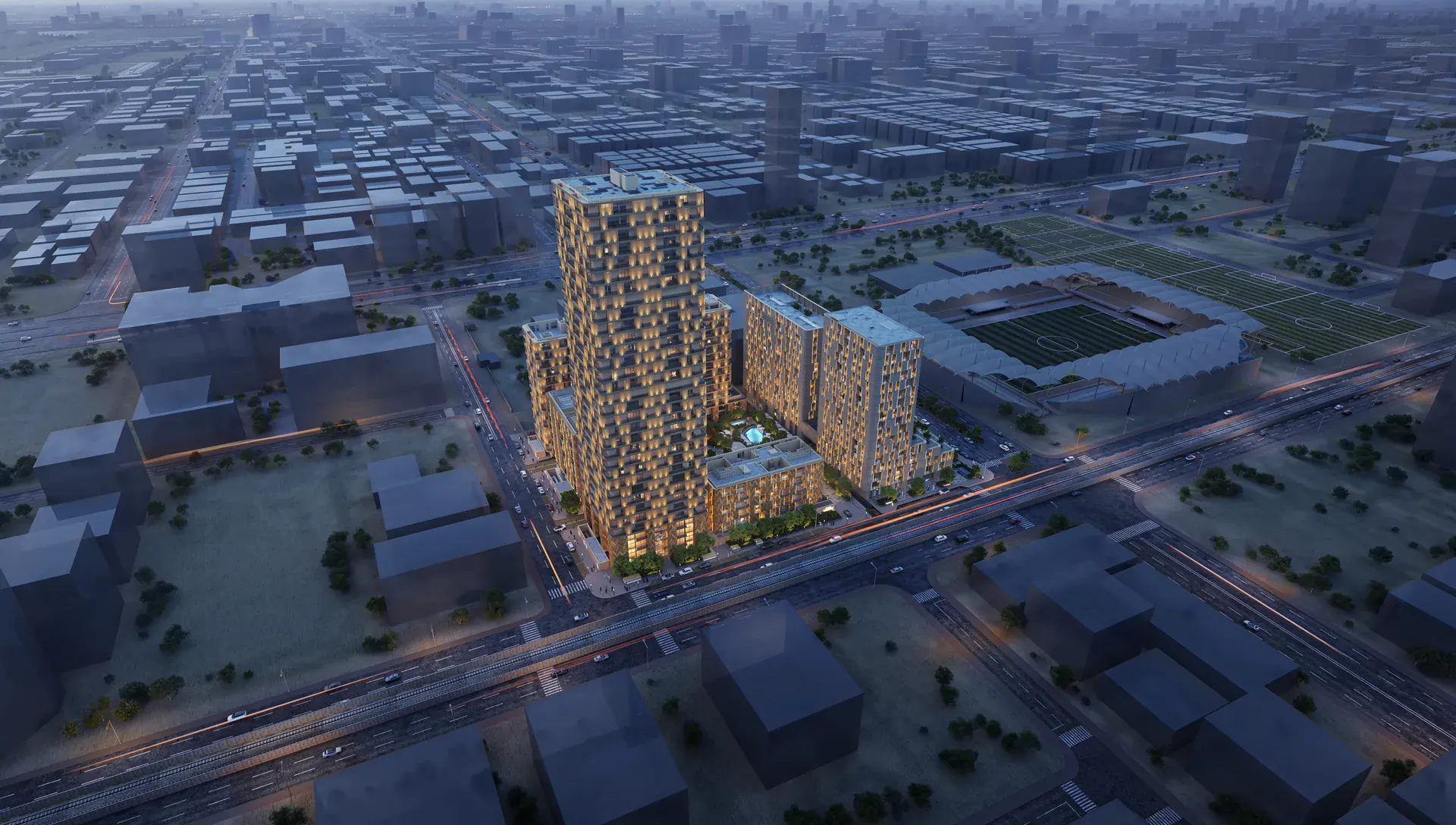

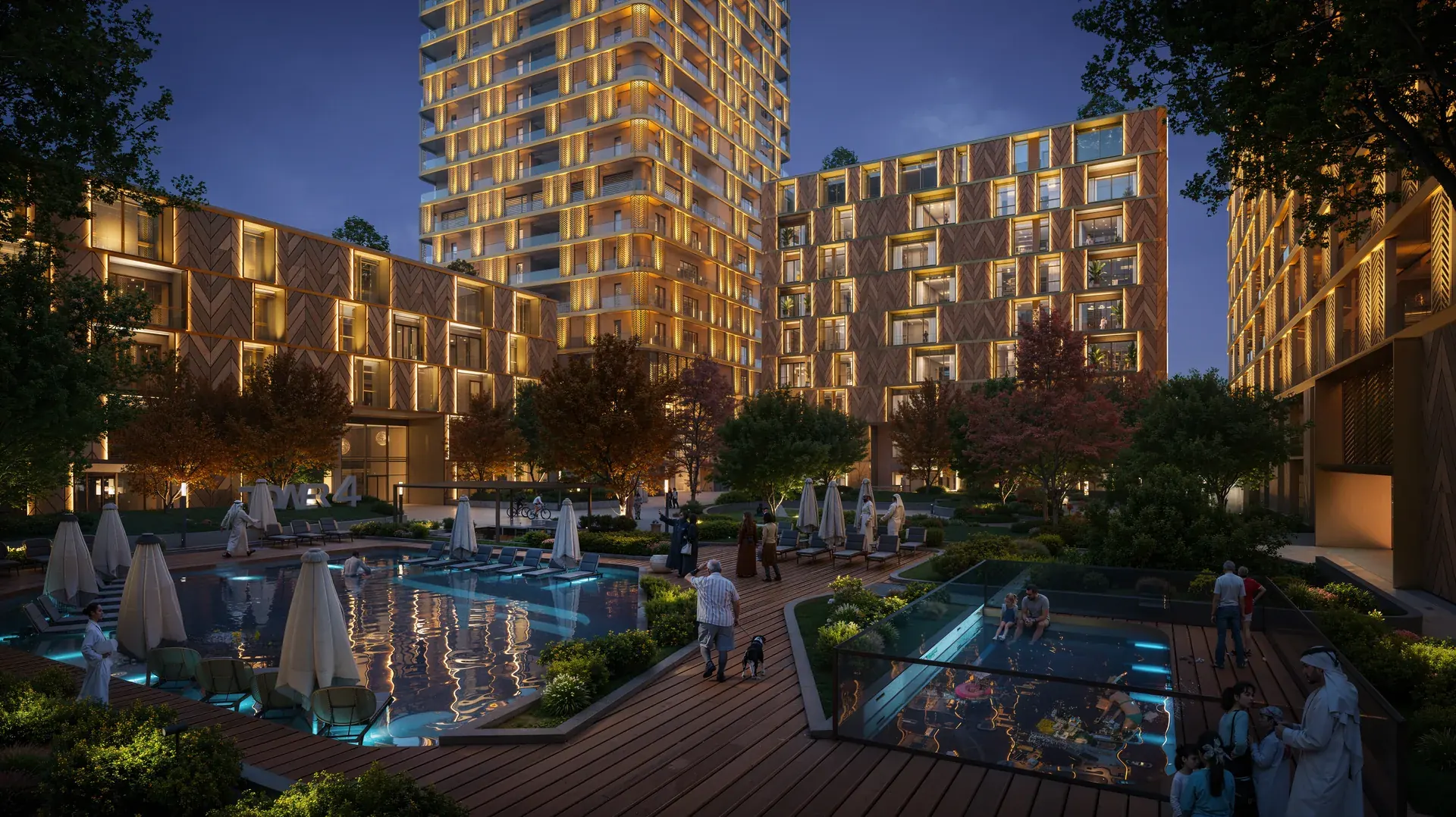

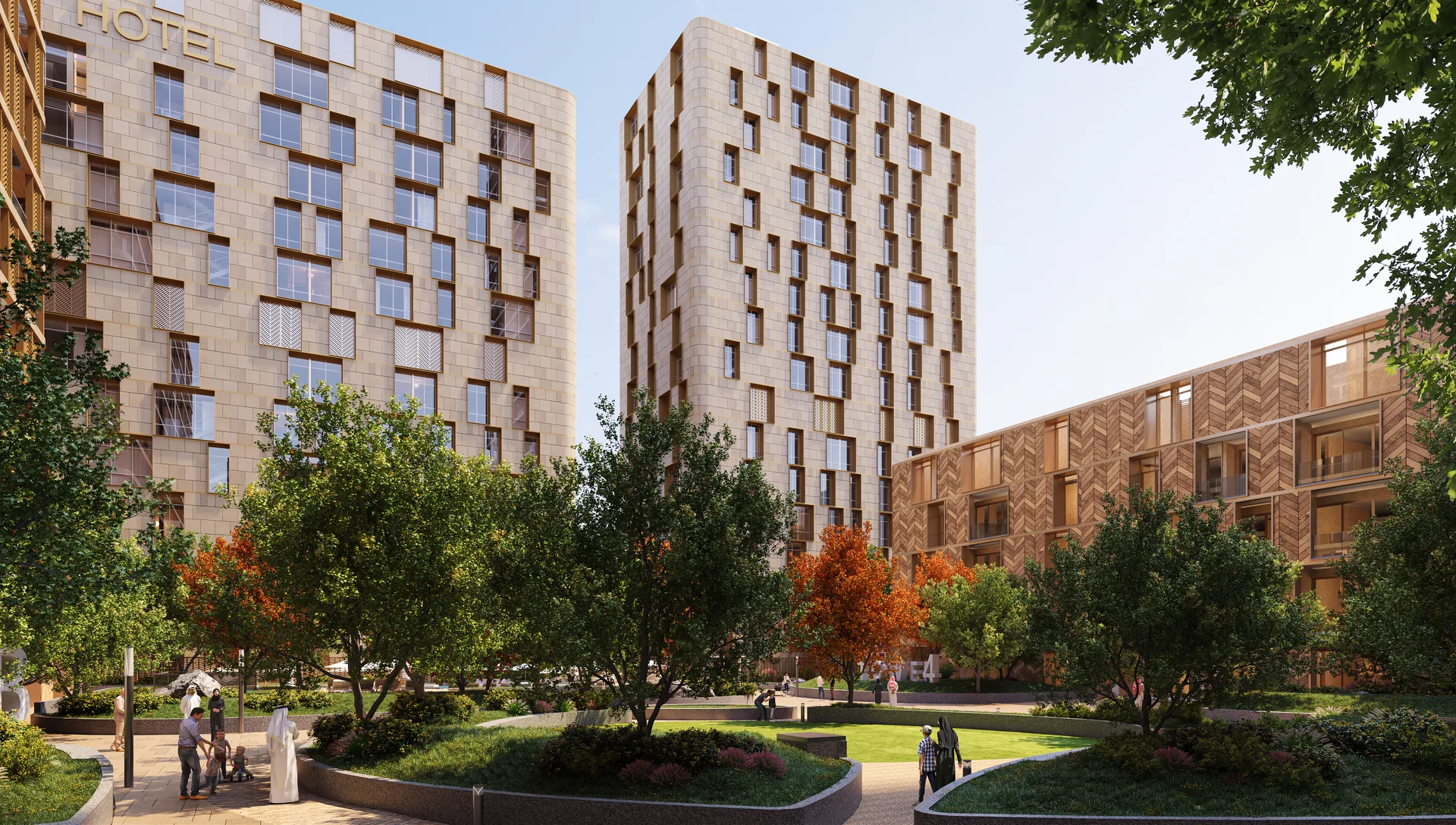

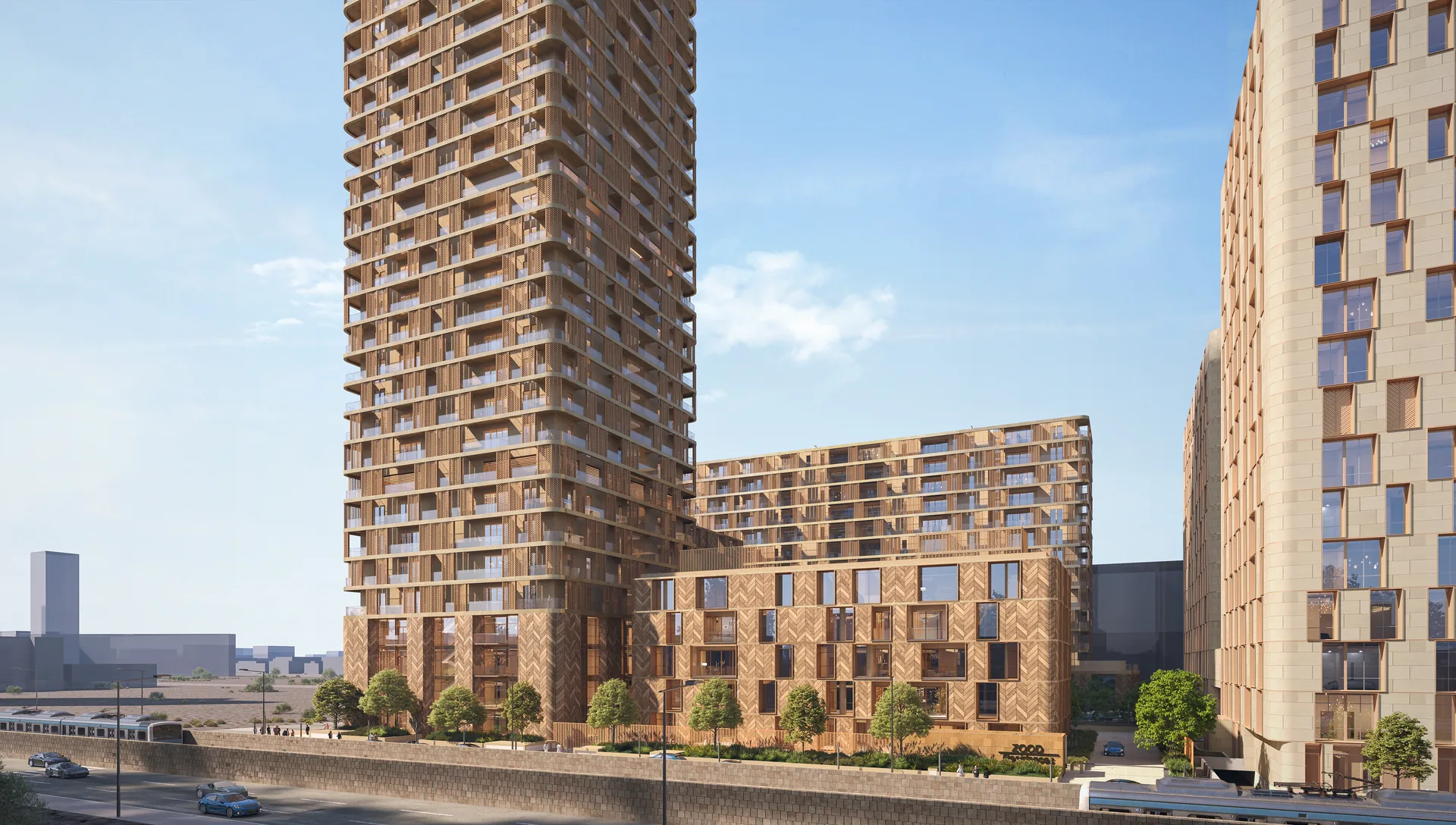

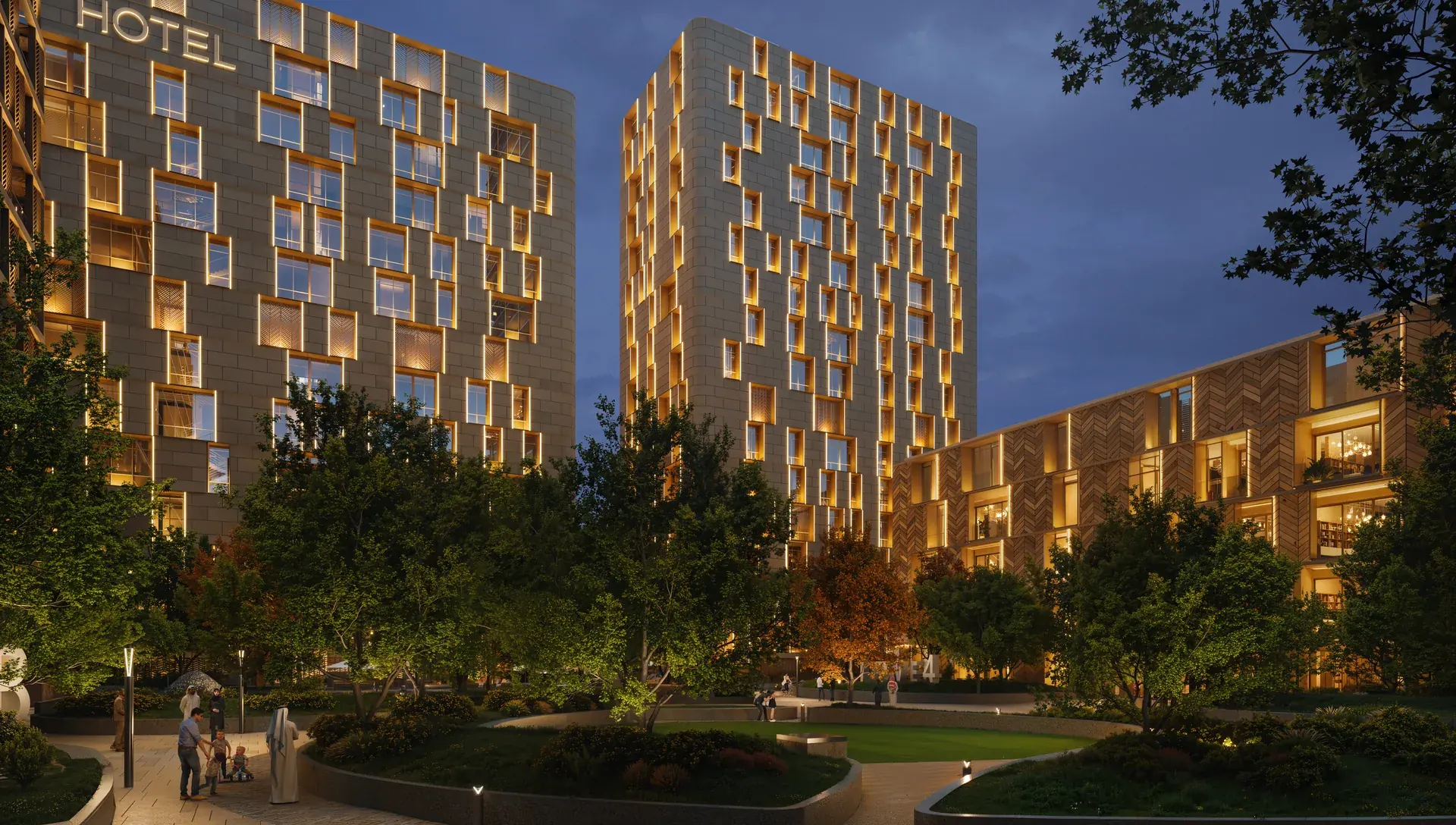

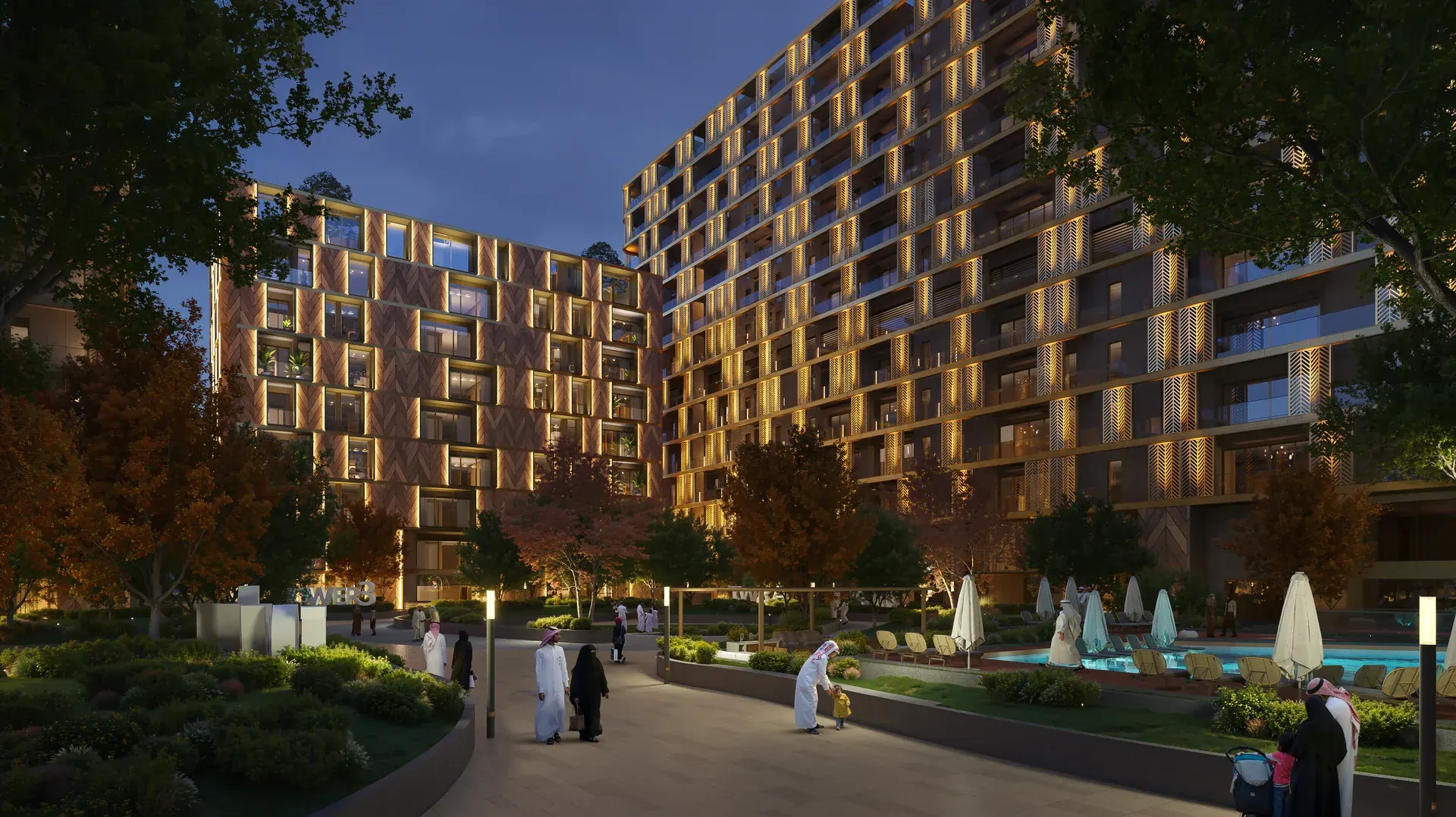

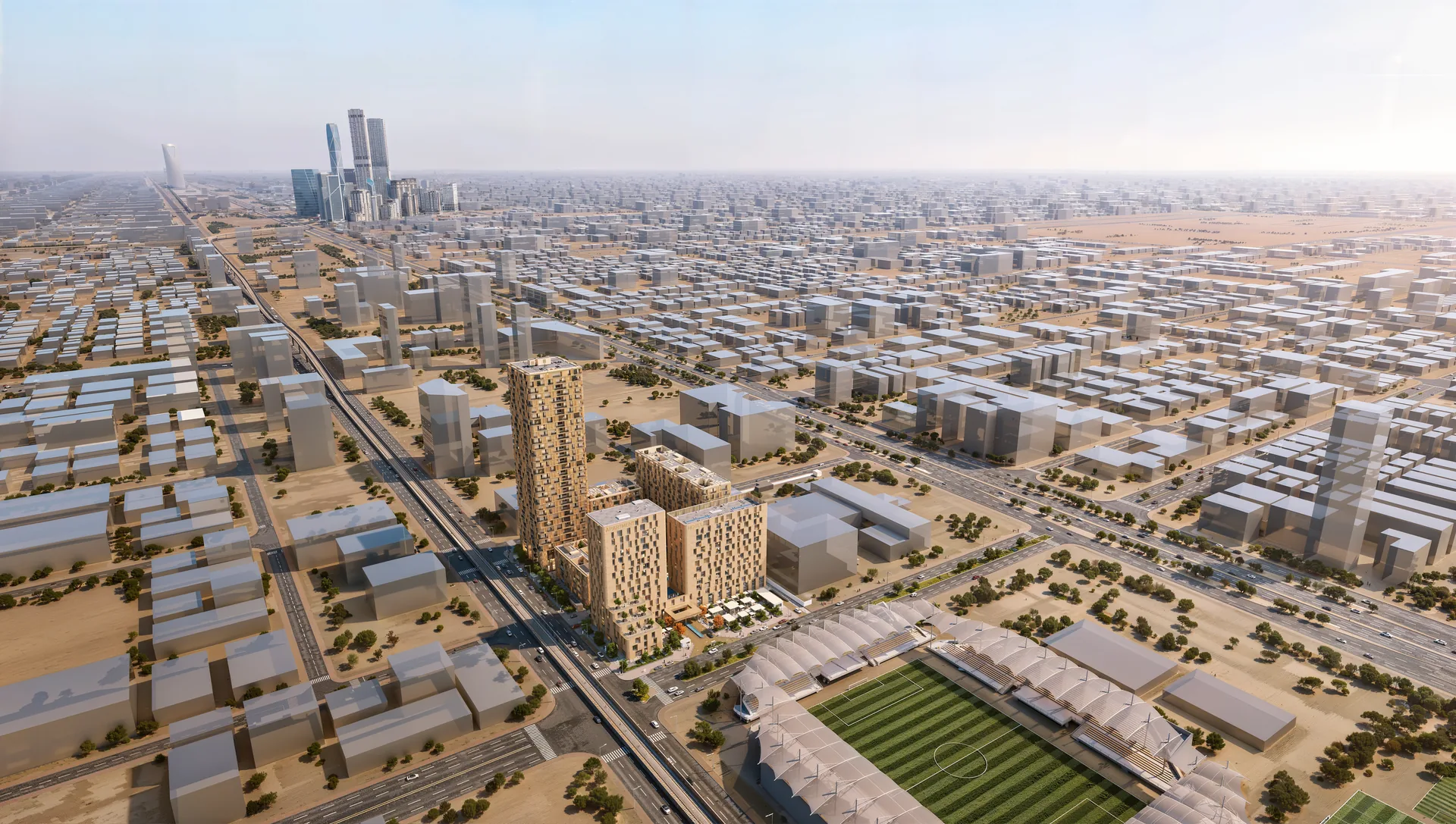

La Vie Residential is a four-tower residential development in Riyadh with 390 apartments, rising to 31 floors and 133 m.

Key Facts & Technical Details

Building Configurations	01 Zone A Tower 1: contain GF + 31 Floors + RA with total height of 133 m ( From the GF to the roof deck) 02 Zone B Tower 2: contain GF + 12 Floors + RA with total height of 57.5 m ( From the GF to the roof deck) 03 Zone C Tower 3: contain GF + 8 Floors + RA with total height of 37.2 m ( From the GF to the roof deck) 04 Zone D Tower 4: contain GF + 3 Floors + RA with total height of 21 m ( From the GF to the roof deck) 05 Zone E the project is contain 4 residential towers (T1=169 APARMTENT ,T2 = 154 APARTMENT,T3=43 APARTMENT , T4=24 APARTMENT
Structural summary	Structural: The selected structural system consists of a post-tensioned flat slab ranging from 250 to 280 mm in thickness, supported by drop panels between 450 and 500 mm. Lateral system and design considerations: The lateral load–resisting system for the buildings will comprise an interactive shear wall and ordinary moment frame system, supplemented by outriggers at the technical floors to mitigate wind-induced drift effects. Steel elements: The façade system has been designed and analyzed, taking into account wind loads as well as component and cladding considerations.
MEP summary	HVAC: VRF Plumbing: DIRECT BOOST FOR WATER SUPPLY WITH TREATMENT PLANT Total electrical load: 10.5 MVA SEC electrical meters: 396

Riyadh, KSA / Under Construction

Key Facts & Technical Details

Client / Developer

ZOOD Real Estate

Land area

12,840 m²

Built-up area

96,446 m²

Sector

residential

Status

Under Construction

Building Configurations

01
Zone A
Tower 1: contain GF + 31 Floors + RA with total height of 133 m ( From the GF to the roof deck)
02
Zone B
Tower 2: contain GF + 12 Floors + RA with total height of 57.5 m ( From the GF to the roof deck)
03
Zone C
Tower 3: contain GF + 8 Floors + RA with total height of 37.2 m ( From the GF to the roof deck)
04
Zone D
Tower 4: contain GF + 3 Floors + RA with total height of 21 m ( From the GF to the roof deck)
05
Zone E
the project is contain 4 residential towers (T1=169 APARMTENT ,T2 = 154 APARTMENT,T3=43 APARTMENT , T4=24 APARTMENT

Structural summary

Structural: The selected structural system consists of a post-tensioned flat slab ranging from 250 to 280 mm in thickness, supported by drop panels between 450 and 500 mm.
Lateral system and design considerations: The lateral load–resisting system for the buildings will comprise an interactive shear wall and ordinary moment frame system, supplemented by outriggers at the technical floors to mitigate wind-induced drift effects.
Steel elements: The façade system has been designed and analyzed, taking into account wind loads as well as component and cladding considerations.

MEP summary
